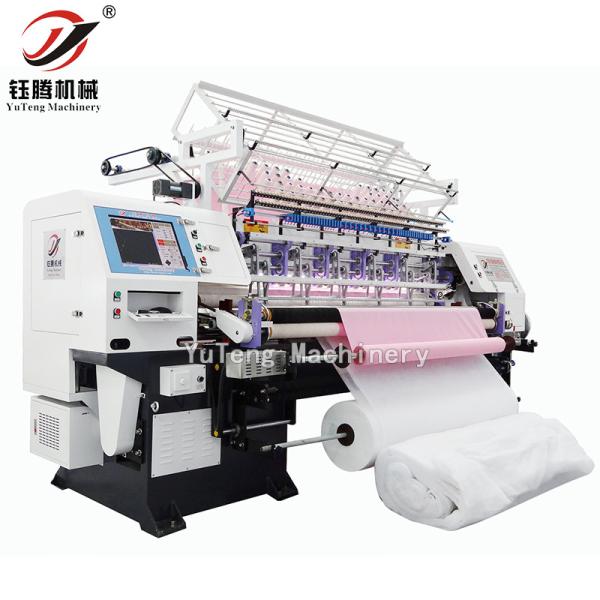

Multi Needle Quilting Machine Bed Sheet Making Machine
1,Computerized speed governing , max.800r/min.
2, Needle row driven by aluminum alloy needle bar frame structure.
Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle
adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The
stand of fabric separate from saddles, effectively reduce the
operating load of motor.
5, Dual clutch device, to solve the synchronization problem of
rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting
independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low
thread-break rate and easy to operate.
11,The machine uses a lock stitch sewing mechanism, which involves
the intertwining of the top thread and bobbin thread in the fabric
to create a secure stitch. This results in durable and high-quality
quilting stitches that can withstand regular usage and washing.
Technical parameters :
Model | YGB76-2-3 | YGB76-3-5 |
Dimension(L*W*H) | 4300*1200*1800(mm) | 4300*1200*1800(mm) |
Quilting Width | 2000mm | 2000mm |
Needle rows | 2 | 3 |
Space between needle rows | 3" inch | 3"+2" inch |
Space between needle | 25.4mm | 25.4mm |
X-axis movement displacement | 254mm | 304.8mm |
Thickness of quilting | 25mm | 25mm |
Stitch length | 2-6mm | 2-6mm |
Speed of operation(m/hour) | 20-120(m/hour) | 20-120(m/hour) |
Model of needle | 16#,19# | 16#,19# |
Quilting Speed(r/min) | 300-800(r/min) | 300-800(r/min) |
Voltage(AC) | 380V/50HZ,3-Phase 220V/60HZ,3-Phzse | 380V/50HZ,3-Phase 220V/60HZ,3-Phase |
Total power | 3.5KW | 3.5KW |
Gross weight | 3800kg | 3800kg
|
Purpose :
It is widely used for quilting high-quality garments, bedding
covers, textile, leather, shoes, cap, bags, vanity, gloves,
sleeping bag, seat cover and Wall decoration etc.
Quilting Machine Pictures :
Certificate :
Company pictures :
Our service :
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you
how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and
engineers.
5.Visit our Factory.
6.Can provide quilted fabric samples.
