    Computerized Multi-needle Quilting Machine With High Efficiency

    Ask Lasest Price
    Brand Name : YUTENG
    Certification : CE Certificate
    Supply Ability : 350 Set/Sets per Year
    Price : $10,000.00 - $35,000.00/sets
    • Product Details
    • Company Profile

    Computerized Multi-needle Quilting Machine With High Efficiency

    High-speed computerized lock stitch multi-needle quilting machine


    1. Computerized speed governing , max. 800 RPM.
    2. Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
    3. Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
    4. Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
    5. Dual clutch device, to solve the synchronization problem of rollers in front and back.
    6. Using high-precision and high rigidity Imported screw mandrel.
    7. 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
    8. Automatic thread-break detection unit.
    9. Infrared sensor make sure more safety operation.
    10. The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.

    Technical parameters
    ModelYGC64-2-3YGC76-2-3GC96-2-3
    Dimension(L*W*H)3800*1320*1800(mm)4300*1320*1800(mm)4900*1320*1800(mm)
    Quilting Width
    1650 mm
    2000mm2450 mm
    Needle rows222
    Space between needlerows76.2mm76.2mm76.2mm
    Space between needle25.4mm25.4mm25.4mm
    X-axis movementdisplacement203.2mm203.2mm203.2mm
    Thickness of quilting≤ 25mm≤ 25mm≤ 25mm
    Stitch length2-8mm2-8mm2-8mm
    Speed of operation(m/hour)20-120(m/hour)20-120(m/hour)20-120(m/hour)
    Model of needle16# 19#16# 19#16# 19#
    Shuttle model7#/10#7#/10#7#/10#
    Quilting Speed(r/min)300-800RPM300-800RPM300-800RPM
    Voltage(AC)380V/50HZ
    220V/60HZ
    380V/50HZ
    220V/60HZ
    380V/50HZ
    220V/60HZ
    Total power3.5KW3.5KW5.5KW
    Gross weight3200KG3800KG
    4200KG

    YGC76

    Computerized Multi-needle Quilting Machine With High Efficiency

    New aluminum alloy needle bar frame structure, Oil free, sturdy and durable, Can avoid lubrication and dirty material effectively


    Computerized Multi-needle Quilting Machine With High Efficiency

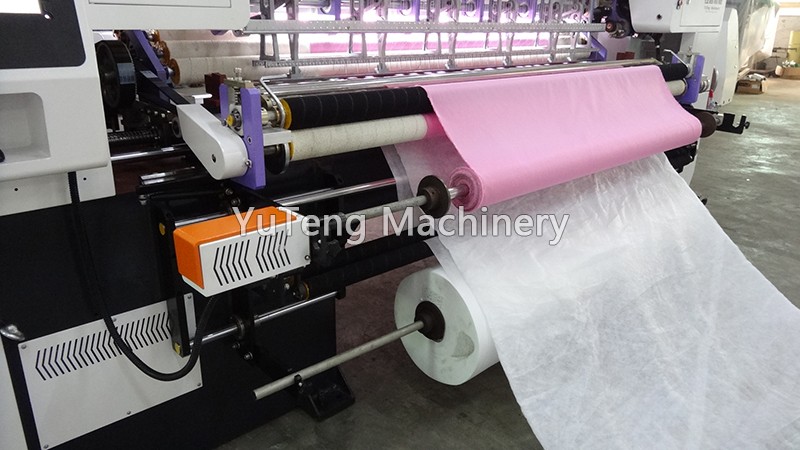

    The stand of bottom cloth separate from moving saddles

    Computerized Multi-needle Quilting Machine With High Efficiency
    Available in multiple languages
    Computerized Multi-needle Quilting Machine With High Efficiency

    Self-developed "YuTeng Quilting System", also supports quilting embroidering mainstream DST format file

    Computerized Multi-needle Quilting Machine With High Efficiency

    Application

    High-speed computerized multi-needle shuttle quilting machine,Is widely used for quilting high-quality garments, bedding covers, textile,shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and wall decoration etc.

    Computerized Multi-needle Quilting Machine With High Efficiency
    Computerized Multi-needle Quilting Machine With High Efficiency
    Computerized Multi-needle Quilting Machine With High Efficiency
    Our Service

    1.Warranty: One year.

    2.Overseas engineers can be sent to install machines and teach you how to use them.
    3.We provide quality Before-sales service and after-sales service.
    4.We have our own manufacture factory and sales teams and engineers.
    5.Visit our Factory.
