Chain Stitch Industrial Quilting Machine Multi Needle High Speed 800r / Min

Dongguan Yuteng Machinery Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Chain Stitch Industrial Quilting Machine Multi Needle High Speed 800r / Min from wholesalers

    Buy cheap Chain Stitch Industrial Quilting Machine Multi Needle High Speed 800r / Min from wholesalers
    • Buy cheap Chain Stitch Industrial Quilting Machine Multi Needle High Speed 800r / Min from wholesalers

    Chain Stitch Industrial Quilting Machine Multi Needle High Speed 800r / Min

    Ask Lasest Price
    Brand Name : YuTeng
    Price : $35,000.00/sets 1-1 sets
    • Product Details
    • Company Profile

    Chain Stitch Industrial Quilting Machine Multi Needle High Speed 800r / Min

    High Speed Computerized Chain Stitch Multi Needle Quilting Machine
    Our Advantages
    Computerized speed governing , max.800r/min.
    Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
    Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
    Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the
    operating load of motor.
    Dual clutch device, to solve the synchronization problem of rollers in front and back.
    Using high-precision and high rigidity Imported screw mandrel.
    360 degree free quilting come with unlimited Multi-span quilting independent patterns.
    Automatic thread-break detection unit.
    Infrared sensor make sure more safety operation.
    The machine runs smoothly, low noise, high precision, low thread-break rate and easy to operate.
    Product Paramenters
    ModelYGH64,YGH80Y,YGH96
    Dimension(L×W×H)(mm)3950*1400*1800,4250*1400*1800,4900*1400*1800
    Quilting width1650mm,2000mm,2450mm
    Needle rows2/3
    Space between needle rows3"/3"+1.5"/3"+2"/3"+3"
    Space between needle25.4mm
    X-axis movement displacement203.2mm,170mm,254mm
    Thickness of quilting≤25mm
    Stitch length1-12mm
    Speed of operation30-200(m/hour)
    Model spindle machine7#,10#
    Model of needle16#,19#
    Quilting speed850(r/min)
    Voltage(AC)380V/220V/50HZ
    Total power3.5KW,5.5KW
    Gross weight3200KG,3650KG,4250KG

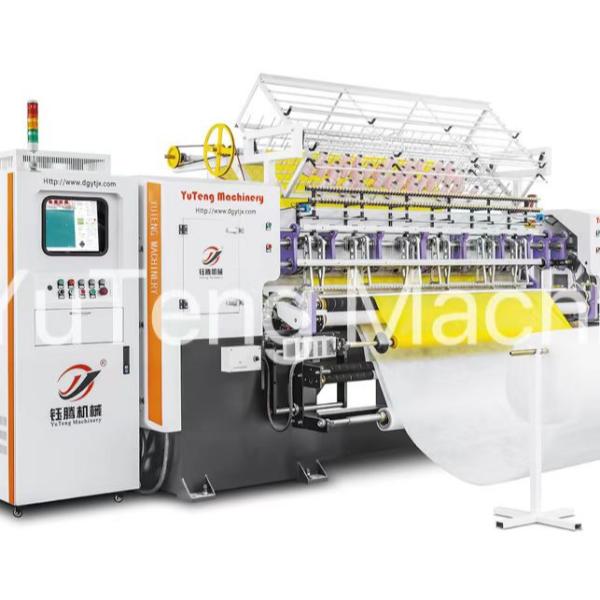

    Product Show
    Chain Stitch Industrial Quilting Machine Multi Needle High Speed 800r / Min
    Chain Stitch Industrial Quilting Machine Multi Needle High Speed 800r / Min
    Finished Product Display
    Chain Stitch Industrial Quilting Machine Multi Needle High Speed 800r / Min
    Company Profile
    Chain Stitch Industrial Quilting Machine Multi Needle High Speed 800r / Min
    Company Profile
    DongGuan YuTeng Machinery Technology Co., Ltd. Is a modernized, high-tech enterprise specializing in High-speed Computerized Shuttle (Lock Stitch) Multi-Needle Quilting Machine, Double Rows Computerized Quilting and Embroidery Machine ,Computerized Chain Stitch Multi-Needle Quilting Machine ,Computerized Panel Cutter Machine, Rolling machine .The products are widely used in garment, bedding, handbags and household ornament etc. With strong R&D both in machinery and software, our company focuses on the the profound development in production, sales, and Service. The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over. 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad . Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clients with full technical support and perfect after service. With integrity, profession, innovation, science and technology, YuTeng is looking forward to cooperating with companies from all over the world.
