High Speed Computerized Chain Stitch Multi-needle Quilting Machine
YT-3000A
Technical Parameters
| Model | YT-3000A |
| Dimension(L*W*H) | 5050*1600*2300 mm |
| Quilting width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 300mm |
| Quilting thickness | 80mm |
| Stitch length | 1-12mm |
| Production speed | 60-230 M/H |
| Model of needle | 21#,22#,23#,24# |
| Quilting speed | 1200R/Min. |
| Voltage | 380V/50HZ 220V/60HZ |
| Power | 8KW |
| Net weight | 5300kg |
The main features:
1. New aluminum alloy needle bar and press plate are controlled by
a double- swinging device without cam avoiding lubrication and
dirtying of material
2.360°Multi-span and independent patterns, automatic thread
trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting
embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system
and self-developed motion control chip, Fast response speed, long
service life, good stability
5.Spindle driven by servo motor, it is able to change speed and
positive inversion, cooperate with software to complete the slice
thread trimming function
6.Adopt international advanced slice thread trimming function;
effectively reduce the probability thread jump, more stable.
7.The spindle, X, Y axis all adopt high-power servo motor
8.Strong functions of pattern-combining and multi-span(Tack & Jump)
quilting to enable you to quilt different patterns in each row in
the mattresses of different sizes
9.High rigid machine body, high running speed, balance running,
high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection
function
Purpose: High Speed Computerized Mattress Chain Stitch Quilting Machine
YT-3000A
is widely used for Mattress panel, mattress pads, bedspreads, comforters, bedding,
blankets, seats covers, decoration, and more.

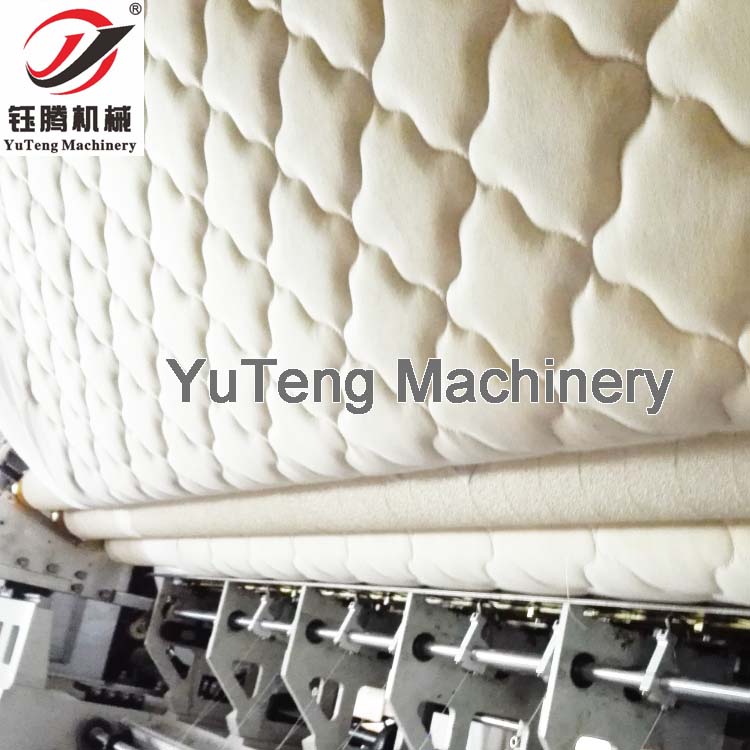

Picture of High Speed Computerized Mattress Chain Stitch Quilting Machine
YT-3000A
This Quilting Machine can do quilt for mattress
cover,comforters,winter quilt,blankets,medical pads...
have 200 pcs mattress quilt pattern saved in computer of quilting
machine
have track & jump function
245 cm max.quilt width
80mmthickness
1200RPM speed
60-230 meters per hour,2000metrs per day(10 hours),60000 meters per
month
1. Delivery Time: It is generally within 7 to 30 days upon receipt
of your 30% deposit, but it depends on the final quantity of the
order.
2. Payment Terms: T/T 30% deposit in advance, 70% balance before
shipment.
3. Delivery Terms: FOB, CIF, CFR, etc.
4. Warranty: One year.
5.After-Sale Services: As part of our customer-centric approach, we
offer additional after-sale services upon request. If needed, we
can arrange for one of our experienced engineers to visit your
factory to provide installation assistance and comprehensive
training on operating and maintaining the machine. This
personalized support ensures that you can maximize the benefits of
our machine and operate it with confidence.
6.Customized Model are available to meet client's various needs.
