High Speed Computer Industrial Quilting Machine Mattress Making
Machines
Product main features :
1, New aluminum alloy needle bar and press plate are controlled by
a double-swinging device without cam avoiding lubrication and
dirtying of material.
2, 360° Multi-span and independent patterns,automatic thread
trimming function.
3, Self-developed "YuTeng Quilting System", also supports quilting
embroidering mainstream DST format file,easy to operation.
4, computer host adopt the most advanced embedded operating system
and self-developed motion control chip,fast response speed,long
service life,good stability .
5, Spindle driven by servo motor,it is able to change speed and
positive inversion,cooperate with software to complete the slice
thread trimming function
6, Adopt international advanced slice thread trimming function
:effectively reduce the probability thread jump,more stable.
7, Strong functions of pattern-combining and
multi-span(Tack&jump)quilting to enable you to quilt different
patterns in each row in the mattresses of different sizes.
8, High rigid machine body,high running speed,balance running ,high
precision,lower rate jump threads,perfect pattern stitch.
9, Infrared safety protection and Auto-stop sensors detection
function.
Technical parameters :
| Model | YT-3200B |
| Dimension(L*W*H) | 5050mm*1600mm*2300mm |
| Quilting Width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2";3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 300mm |
| Thickness of quilting | ≤80mm |
| Stitch length | 1-12mm |
| Speed of operation(m/hour) | 60-230(m/hour) |
| Model of needle | 21#,22#,23#,24# |
| Quilting Speed(r/min) | 1200(r/min) |
| Voltage(AC) | 380V/50HZ , 220V/60HZ |
| Total power | 8KW |
| Gross weight | 5300kg |

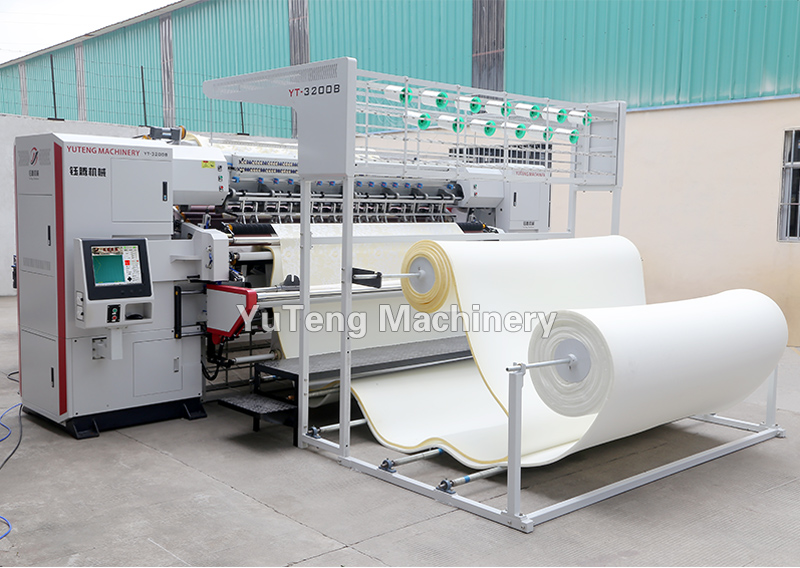

Machine picture:
Purpose :
Mattress panel,mattress
pads,bedspreads,comforters,bedding,blankets,seats covers,
decoration and more.
Certificate :
Company pictures :
Our Services:
1.Warranty: The Industrial Computerized Sewing and Quilting Machine
comes with a one-year warranty, providing assurance and support
against any manufacturing defects during this period.
2.Installation and Training: Our company offers the service of
sending overseas engineers to install the machines and provide
comprehensive training on their usage. This ensures that you
receive proper guidance and expertise in utilizing the machine
effectively.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and
engineers.
5.Visit our Factory.
