Computerized Quilting Embroidery Machine High Speed Multi Head
Quilting Embroidery Machine
• Quilting and embroidery is completed together.
• Independent research and development of the operating system,
with the latest embedded operating system and self-researched
motion control chips on the market, the main frame response
quickly, with long life and good stability, easy drawing and
useful.
• Compatible with embroidery machine DST files pattern, and
optional feature for proofing production.
• Auto-return for patch-up embroidery function.
• Can move an inch in front of the needle bar, and provide more
combination of flowers form.
• Saddling rack, roller and spindle are drive by servo motor.
• The needle bar running adopt aluminum alloy needle bar frame
structure, don’t need to add extra lube, strong and durable.
• Adopt separation structure of convey cloth rack and moving
saddling rack, effectively reduce the load and jitter of saddling
rack.
• Adopt double clutch device, effectively solve the synchronization
problems of (Front and back) rollers.
• Advanced and practical testing bottom and upper thread broken
techniques, the machine is auto-stop when thread is broken.
• Infrared sensor makes the operation more secure.
• Unique design concept of three rollers, make the flower shape box
line more beautiful, more stable running.
• Super comfortable space for changing shuttle, easy to convey
cloth.
A luxury computerized quilting embroidery machine utilizes advanced
computerized technology to offer a wide range of features and
capabilities. It may feature a high-resolution touchscreen
interface or a user-friendly software interface that allows for
easy navigation and customization of embroidery and quilting
designs. The machine may also have built-in Wi-Fi or USB
connectivity for seamless design transfers.
Technical Parameters :
| Model | YTX2-34F | YTX2-26F |
| Dimension(L*W*H) | 6000*1500*2100mm | 6050*1500*2100mm |
| Quilting width(mm)) | 1700+1700mm | 1700+1700mm |
| Needle/Head | 2 | 2 |
| Heads | 34 | 26 |
| Space between needle | 50.8mm | 67.5mm |
| X-axis movement displacement | 250mm | 250mm |
| Stitch length | 1mm-12.7mm | 1mm-12.7mm |
| Model of needle | 9#-16# | 9#-16# |
| Quilting speed(rpm) | 600-1000 | 600-1000 |
| Voltage(AC) | 380V/50HZ 220V/60HZ | 380V/50HZ 220V/60HZ |
| Total power | 5.5KW | 5.5KW |
| Gross weight | 3500KGS | 3500KGS |
Purpose :
It is widely used for quilting high-quality garments, bedding
covers, textile, leather, shoes, cap, bags, vanity, gloves,
sleeping bag, seat cover and wall decoration etc.

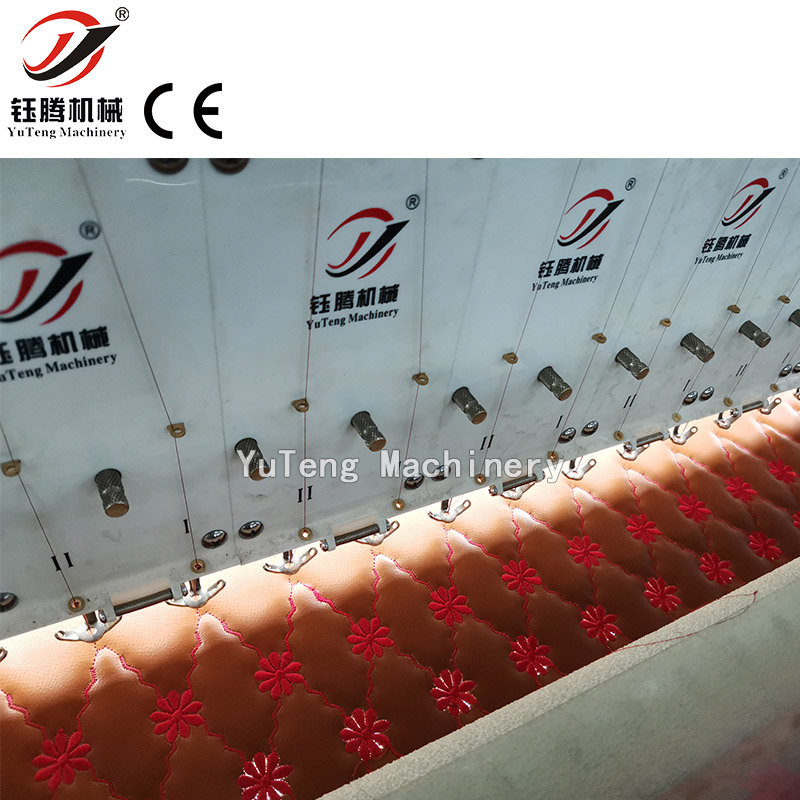

Machine display :
pattern display :
