    Computerised Shuttle Quilting Machine Lock Stitch For Garment

    Ask Lasest Price
    Brand Name : YuTeng Machinery
    Certification : CE Certificate
    Supply Ability : 360 Set/Sets per Year
    Price :
    Payment Terms : T/T, D/P
    • Product Details
    • Company Profile

    Computerised Shuttle Quilting Machine Lock Stitch For Garment


    Computerized Multi-Needel Shuttle (Lock Stitch) Quilting Machine,Multi Needle Sewing Machine For Garment


    Description:

    The Computerised Shuttle Quilting Machine with Lock Stitch is specifically designed for garment manufacturing. It is a technologically advanced quilting machine that offers precise and efficient stitching for a wide range of garments. This machine utilizes a lock stitch mechanism, ensuring secure and durable stitching results.


    ♦ Product main features :

    1, Computerized speed governing , max.800r/min.
    2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
    3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
    4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
    5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
    6, Using high-precision and high rigidity Imported screw mandrel.
    7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
    8, Automatic thread-break detection unit.
    9, Infrared sensor make sure more safety operation.
    10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.


    ♦ Technical parameters :

    Model

    YGC76-2-3

    YGC76-3-5

    Dimension(L*W*H)

    4300*1200*1800(mm)

    4300*1200*1800(mm)

    Quilting Width

    2000mm

    2000mm

    Needle rows

    2

    3

    Space between needle rows

    3" inch

    3"+2" inch

    Space between needle

    25.4mm

    25.4mm

    X-axis movement displacement

    254mm

    304.8mm

    Thickness of quilting

    ≤25mm

    ≤25mm

    Stitch length

    2-6mm

    2-6mm

    Speed of operation(m/hour)

    20-120(m/hour)

    20-120(m/hour)

    Model of needle

    16#,19#

    16#,19#

    Quilting Speed(r/min)

    300-800(RPM)

    300-800(RPM)

    Voltage(AC)

    380V/220V/50HZ

    380/220V/50HZ

    Total power

    3.5KW

    3.5KW

    Gross weight

    3500kg

    3500kg


    Computerised Shuttle Quilting Machine Lock Stitch For Garment


    ♦ Machine details :

    Computerised Shuttle Quilting Machine Lock Stitch For Garment

    ♦ Purpose :

    It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.

    Computerised Shuttle Quilting Machine Lock Stitch For Garment

    Computerised Shuttle Quilting Machine Lock Stitch For Garment

    Computerised Shuttle Quilting Machine Lock Stitch For Garment

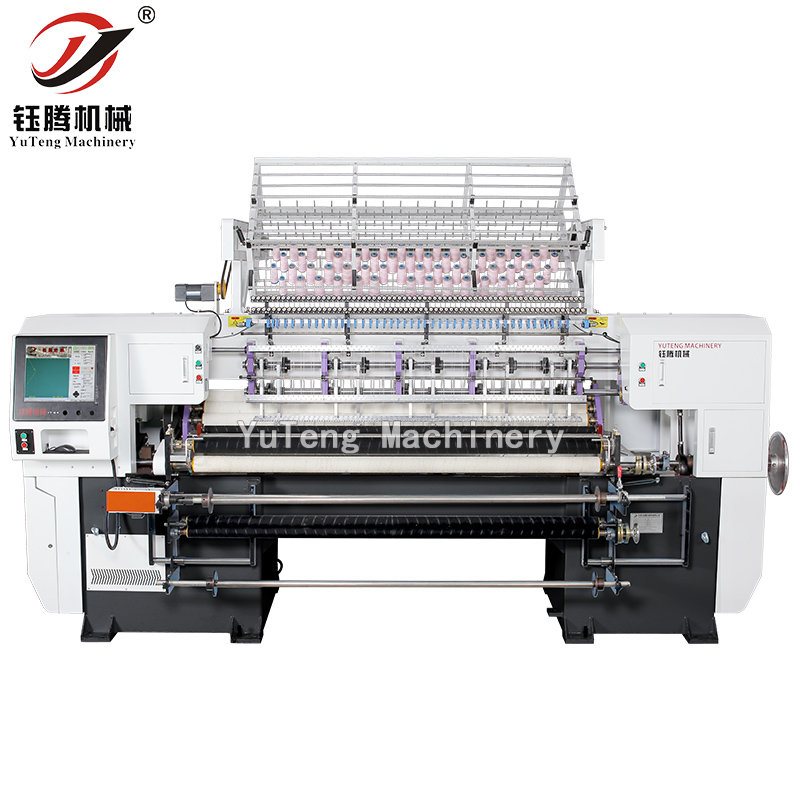

    ♦ Quilting Machine Pictures :

    Computerised Shuttle Quilting Machine Lock Stitch For GarmentComputerised Shuttle Quilting Machine Lock Stitch For Garment

    Computerised Shuttle Quilting Machine Lock Stitch For Garment


    ♦ Certificate :

    Computerised Shuttle Quilting Machine Lock Stitch For Garment


    ♦ Company pictures :

    Computerised Shuttle Quilting Machine Lock Stitch For GarmentComputerised Shuttle Quilting Machine Lock Stitch For Garment


    ♦Our service :

    1.Warranty: One year.
    2.Overseas engineers can be sent to install machines and teach you how to use them.
    3.We provide quality Before-sales service and after-sales service.

    4.We have our own manufacture factory and sales teams and engineers.
    5.Visit our Factory.

    6.Can provide quilted fabric samples.
