Automatic Computerized Quilting Fabric Panel Cutting Machine

♦ Product main features :
1,7”touch screen,large screen for ease of operation
2,Hidden slitting blades are more convenient and safer
3,Electric controls for length and width of cross cut which make operations more human
4,Feed-in top with article points for pressure rolle.The pressure will be even,and feeding will be leveling off.The slitting cut will be more smooth,especially for the edge trimming of thinner materil
5,Y-dimension with encoder for counting length.It can cut materials length Use the conveyor belt mechanical discharge.It will be convenient to fold material and save artificial.
♦ Purpose :
It is used to crosscut,slitting and edge trimming the quilted fabric,and usually works in tandem with
the quilting machine and rolling device,but it can also run alone.
♦ Technical Parameters :
| Model | YTCM-C | |
| Machine(l*w*h) | 3200*2200*2500 | |
| Cutting width | 2400mm (can be customized) | |
| Cutting length | Min 30cm-Infinite | |
| Cutting speed | Vertical cut 10m/min,horizontal cut 5 s/cut | |
| Machine weight | 600KGS | |
| Max power | 1.8KW | |
| Voltage | 380V/50HZ 3P | |

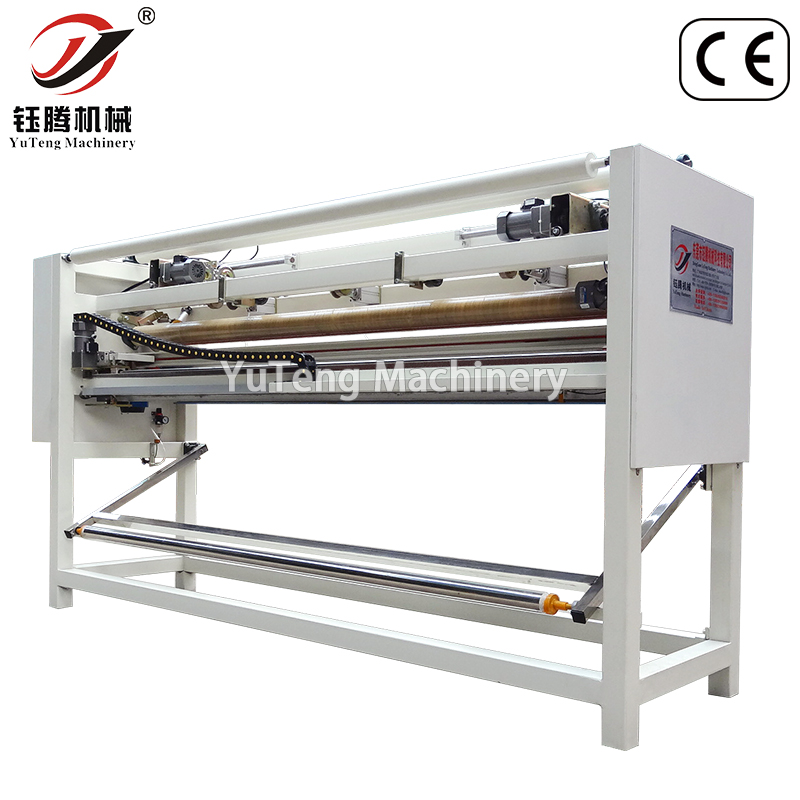

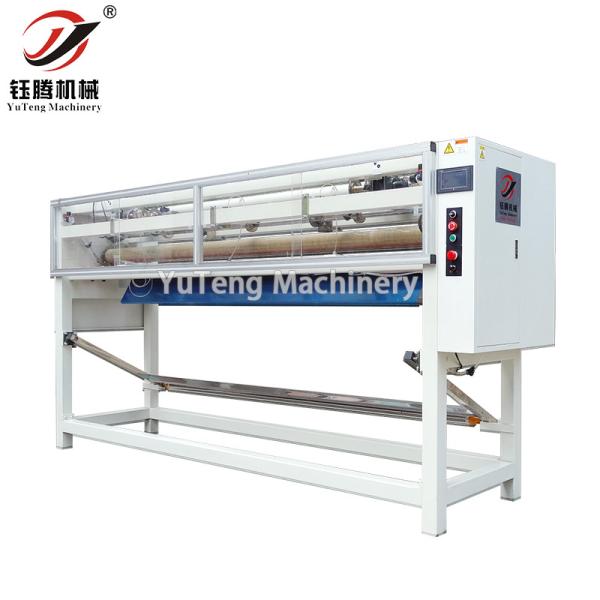

♦ Machine display :
