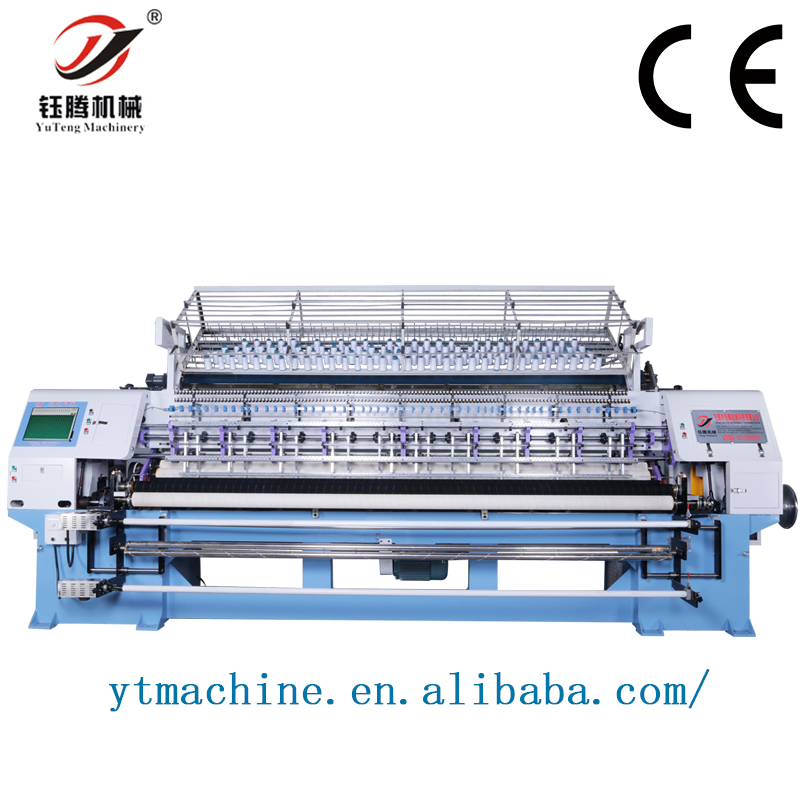

    Multipurpose Lock Stitch Quilting Machine High Speed For Bed Sheet 1650mm Width

    Ask Lasest Price
    Brand Name : YUTENG
    Certification : CE Certificate
    Supply Ability : 300 Set/Sets per Year
    Price : $10,000.00 - $60,000.00/sets
    • Product Details
    • Company Profile

    Multipurpose Lock Stitch Quilting Machine High Speed For Bed Sheet 1650mm Width


    Lock Stitch Quilting Machine High Speed Bed Sheet Multi Needle Quilting Machine Single Needle Quilting Machine


    Product Main Features:

    • Computerized speed governing, Max.800r/min.
    • Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
    • Saddles and Rollers driven by Servo drive equipment,Spindle adopts frequency conversion control.
    • Saddles using quilting machine with high rigidity design. The stand of fabric seprate from saddles, effectively reduce the operaing load of motor.
    • Dual clutch device, to solve the synchronization problem of rollers in front and back.
    • Using high-pricision and high rigidity imported screw mandrel.
    • 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
    • Automatic thread-break detection unit.
    • Infrared sensor make sure more safety operation.
    • The machine runs smoothly, low noise, high precision, low thread-break rate and easy to operate
    • These machines often include a thread tension adjustment function that allows users to ensure the lock stitch is formed correctly, preventing puckering or loose stitches.
    Technical parameters
    ModelYGC64-2-3YGC76-2-3YGC96-2-3
    Dimension(L*W*H)3800*1200*1800(mm)4300*1200*1800(mm)4900*1200*1800(mm)
    Quilting Width1650mm2000mm2450mm
    Needle rows222
    Space between needle rows76.2mm76.2mm76.2mm
    Space between needle25.4mm25.4mm25.4mm
    X-axis movement displacement228.6mm228.6mm228.6mm
    Thickness of quilting25mm25mm25mm
    Stitch length2-8mm2-8mm2-8mm
    Speed of operation(m/hour)20-16020-16020-160
    Model of needle16#,19#16#,19#16#,19#
    shuttle model7# or 10#7# or10#7# or 10#
    Quilting Speed(r/min)300-800300-800300-800
    Voltage(AC)380V/50HZ,220V/60HZ, 3P380V/50HZ,220V/60HZ, 3P380V/50HZ,220V/60HZ, 3P
    Total power3.5KW3.5KW5.5KW
    Gross weight3300KGS3500KGS4500KGS
    * Can be customized according to customer requirements
