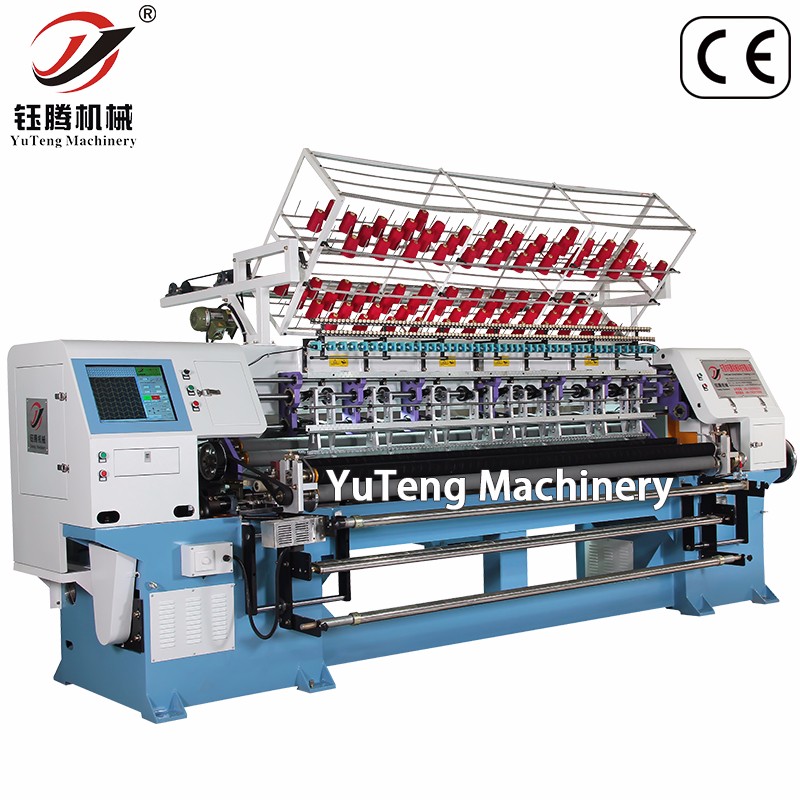

    2540mm Lock Stitch Quilting Machine , Shuttleless Quilting Machine For Quilt Blanket

    Ask Lasest Price
    Brand Name : YuTeng
    Model Number : YGB96
    Certification : CE Certificate
    Supply Ability : 500 Set/Sets per Year
    Price : $10,000.00 - $60,000.00/sets
    • Product Details
    • Company Profile

    2540mm Lock Stitch Quilting Machine , Shuttleless Quilting Machine For Quilt Blanket

    Lock Stitch Quilting Machine Multi Needle Shuttleless Quilting Machine For Quilt And Blanket


    It is widely used for quilting high-quality garments , bedding covers , texile , leather , shoes , cap , bags , vanity , gloves , sleeping bag , seat cover and Wall decoration etc .

    Main Features

    1) Computerized speed governing , max.800r/min.
    2) Needle row driven by aluminum alloy needle bar frame structure . Oil free , sturdy and durable .

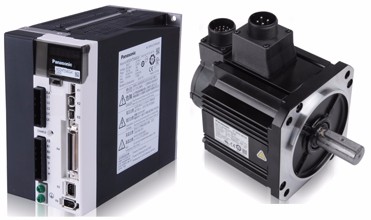

    3) Saddles and Rollers driven by Servo driven equipment , Spindle adopts frequency conversion control .
    4) Saddles using quilting machine with high rigidity design . The stand of fabric separate from saddles , effectively reduce the operating load of motor .
    5) Dual clutch device , to solve the synchronization problem of rollers in front and back .
    6) Using high-precision and high rigidity imported screw mandrel .
    7) 360 degree free quilting come with unlimited Multi-span quilting independent patterns .
    8) Automatic thread -break detection unit .
    9) Infrared sensor make sure more safety operation .
    10) The machine runs smoothly , low noise , high precision , low thread-break rate and easy to operate .

    1. Delivery Time: It is generally within 7 to 30 days upon receipt of your 30% deposit, but it depends on the final quantity of the order.
    2. Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.
    3. Delivery Terms: FOB, CIF, CFR, etc.
    4.After-sale services: Good after-sale service provided, we believe in good customer service all the time.
    5. Warrany: One year.
    6.Customized Model are available to meet client's various needs.


    Model
    96series
    Stitch length
    2-6mm
    Dimension(L*W*H)(mm)
    4900*1200*1800
    Speed of operation(m/hour)
    20-120
    Quilting Width(mm)
    2540mm
    Model of needle
    16#19#
    The number of
    needle rows
    2/3
    Quilting Speed(r/min)
    300-800
    Space between needle
    25.4mm
    Voltage(AC)
    380V 220V
    X-axis movement displacement
    304.8mm
    Total power
    5.5kw
    Thickness of quilting
    ≤25mm
    Grossweight
    4500kg
    2540mm Lock Stitch Quilting Machine , Shuttleless Quilting Machine For Quilt Blanket
    2540mm Lock Stitch Quilting Machine , Shuttleless Quilting Machine For Quilt Blanket
    2540mm Lock Stitch Quilting Machine , Shuttleless Quilting Machine For Quilt Blanket
    2540mm Lock Stitch Quilting Machine , Shuttleless Quilting Machine For Quilt Blanket
    Packing & Delivery
    2540mm Lock Stitch Quilting Machine , Shuttleless Quilting Machine For Quilt Blanket
    2540mm Lock Stitch Quilting Machine , Shuttleless Quilting Machine For Quilt Blanket

    The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.
