    Shuttle Jacket Fabric Quilting Machine Computerized Multifunctional

    Ask Lasest Price
    Brand Name : YuTeng Machinery
    Certification : CE Certificate
    Supply Ability : 300 Set/Sets per Year
    Price : $10,000.00 - $40,000.00/sets
    • Product Details
    • Company Profile

    Shuttle Jacket Fabric Quilting Machine Computerized Multifunctional

    High Speed Computerized Shuttle Muilti Needle Quilting Machine,Jacket Fabric Quilting Machine

    Shuttle Jacket Fabric Quilting Machine Computerized Multifunctional

    ♦ Technical parameters :

    Model

    YGB76-2-3

    YGB76-3-5/6

    Dimension(L*W*H)

    4300*1200*1800(mm)

    4300*1200*1800(mm)

    Quilting Width

    2000mm

    2000mm

    Needle rows

    2

    3

    Space between needle rows

    3"

    3"+2",3"+3"

    Space between needle

    25.4mm

    25.4mm

    X-axis movement displacement

    203.2mm

    304.8mm

    Thickness of quilting

    25mm

    25mm

    Stitch length

    2-6mm

    2-6mm

    Speed of operation(m/hour)

    20-120(m/hour)

    20-120(m/hour)

    Model of needle

    16#,19#

    16#,19#

    Quilting Speed(r/min)

    300-800(r/min)

    300-800(r/min)

    Voltage(AC)

    380V/50HZ,220V/60HZ

    380V/50HZ,220V/60HZ

    Total power

    3.5KW

    3.5KW

    Gross weight

    3800kg

    3800kg

    * Can be customized according to customer requirements



    ♦ Product main features :

    1,Computerized speed governing , max.800r/min.
    2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
    3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
    4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
    5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
    6, Using high-precision and high rigidity Imported screw mandrel.
    7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
    8, Automatic thread-break detection unit.
    9, Infrared sensor make sure more safety operation.
    10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.

    ♦ Purpose :

    It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.

    Shuttle Jacket Fabric Quilting Machine Computerized Multifunctional

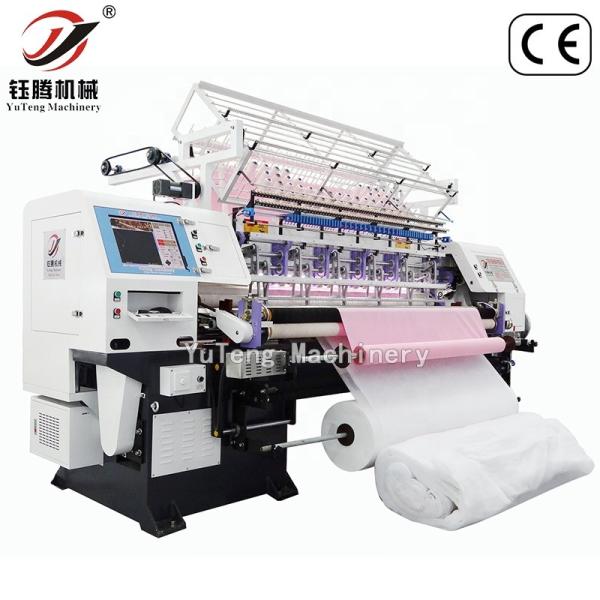

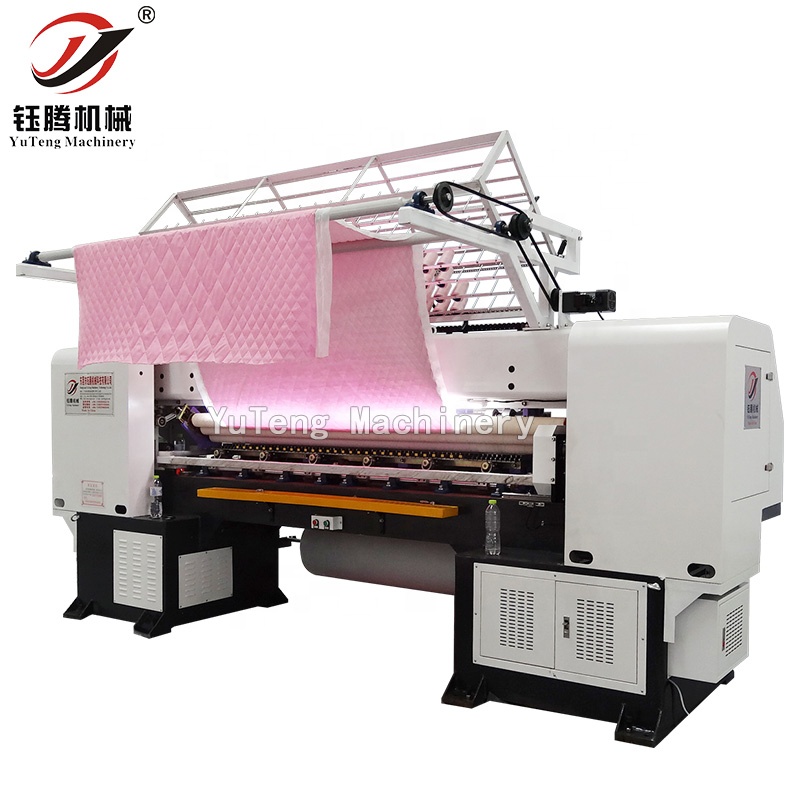

    ♦ Quilting Machine Pictures :

    Shuttle Jacket Fabric Quilting Machine Computerized MultifunctionalShuttle Jacket Fabric Quilting Machine Computerized MultifunctionalShuttle Jacket Fabric Quilting Machine Computerized Multifunctional



    ♦ Company pictures :

    Shuttle Jacket Fabric Quilting Machine Computerized Multifunctional


    ♦Our service :

    1.Warranty: One year.
    2.Overseas engineers can be sent to install machines and teach you how to use them.
    3.We provide quality Before-sales service and after-sales service.

    4.We have our own manufacture factory and sales teams and engineers.
    5.Visit our Factory.
