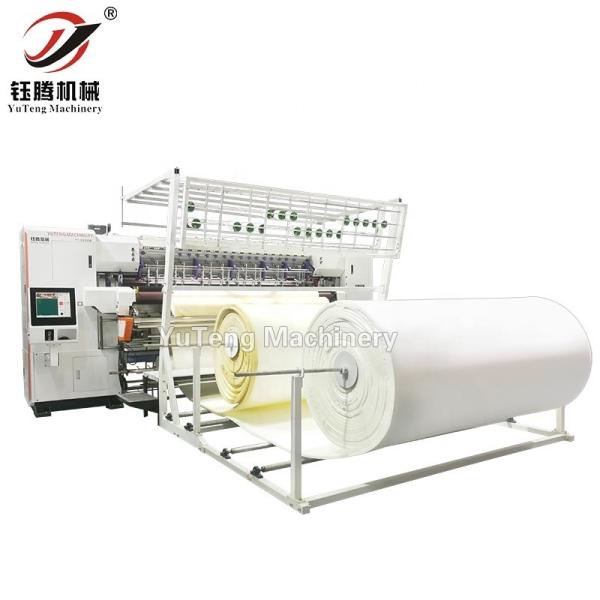

Computerized Industial Multi Needle Mattress Quilting Machine
The machine is mainly used for quilting mattresses,home
textiles,carpets,windbreakers,sleeping bags and pet mats
Main Functions:
1. Full thread break detection for top and bottom threads
2. 360°Multi-span and independent patterns, automatic thread
trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting
embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system
and self-developed motion control chip, Fast response speed, long
service life, good stability
5. Spindle driven by servo motor, it is able to change speed and
positive inversion, cooperate with software to complete the slice
thread trimming function
6. Adopt international advanced slice thread trimming function;
effectively reduce the probability thread jump, more stable.
7. The spindle, X, Y axis all adopt high-power servo motor
8. Strong functions of pattern-combining and multi-span (Tack &
Jump) quilting to enable you to quilt different patterns in each
row in the mattresses of different sizes
9. High rigid machine body, high running speed, balance running,
high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection
function
11. New aluminum alloy needle bar and press plate are controlled by
a double- swinging device without cam avoiding lubrication and
dirtying of material
Parameter:(Unit:mm)
Model | YT-3200B |
Dimension(L*W*H) | 5050mm*1600mm*2300mm |
Quilting Width | 2450mm |
Needle rows | 3 |
Space between needle rows | 3"+2"; 3"+3" |
Space between needle | 25.4mm |
X-axis movement displacement | 305mm |
Thickness of quilting | ≤80mm |
Stitch length | 1-12mm |
Speed of operation(m/hour) | 60-230(m/hour) |
Model of needle | 21#,22#,23#,24# |
Quilting Speed(r/min) | 1200(r/min) |
Voltage(AC) | 380V/50HZ , 220V/60HZ ,3-Phase |
Total power | 8KW |
Gross weight | 5200KG |
Connect With Cutting Machine:
Connect With Roller Machine:
Quilted Samples:
Quality Management:

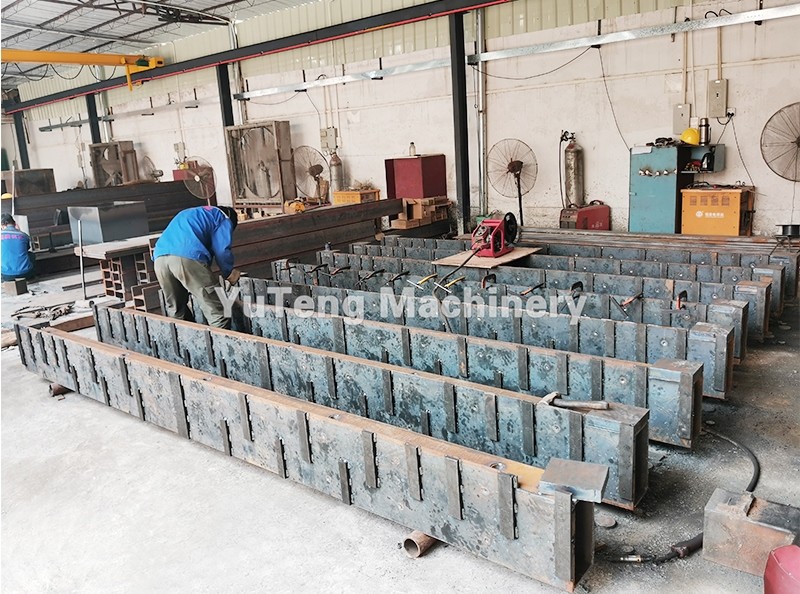

We have a professional R&D department, spare parts workshop and
assembly workshop . The quality of the machine is strictly
controlled by us.
After-sales Support:
*Inquiry and consulting support.
*Sample testing support.
*View our Factory.
*Engineers available to service machinery overseas.
*warranty: 1 year
About us:
DongGuan YuTeng Machinery Technology Co., Ltd. is a
modernized,high-tech enterprise specializing in High-speed
Computerized Shuttle (Lock Stitch) Multi-Needle Quilting
Machine,Computerized Quilting and Embroidery Machine,Computerized
Chain Stitch Multi-Needle Quilting Machine,High-speed computerized
double-row quilting and embroidery Machine, Computerized Panel
Cutter Machine, Roller Machine. The products are widely used in
garment, bedding,handbags and household ornament etc. With strong
R&D both in machinery and software, our company focuses on the
profound development in production, sales, and service.
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in
quilting machinery Industry for over 20 years, proficient in
advanced manufacturing technology, unique designs and Innovation.
He has won a good reputation in the Industry. With Innovative
technology, stable quality and high quality after service, products
in his brand sell very good at home and abroad. Leading an
outstanding R&D team more than 20 professional engineering and
technical personnel and customer service outlets throughout the
country, YeTeng always provides clientswith full technical support
and perfect afterservice.
