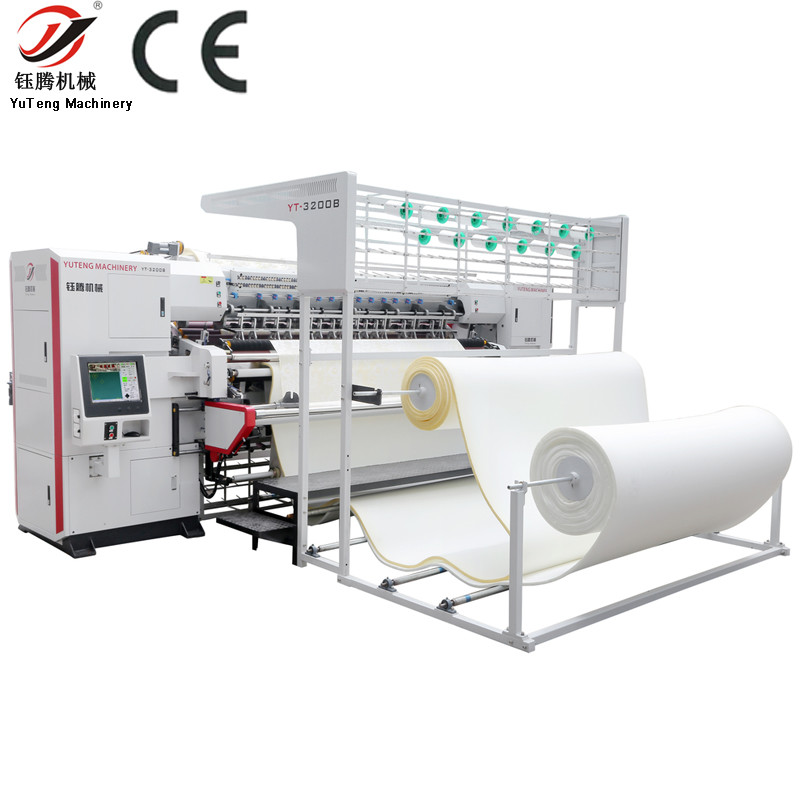

Computerized Mattress Shuttleless Multi Needle Quilting Machine
Product Description:
Used to quilt mattress panel, mattress pads, bedspreads,
comforters, bedding, blankets, seats covers, decoration, bedding
and more
Features:
1. Full thread break detection for top and bottom threads
2. 360°Multi-span and independent patterns, automatic thread
trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting
embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system
and self-developed motion control chip, Fast response speed, long
service life, good stability
5. Spindle driven by servo motor, it is able to change speed and
positive inversion, cooperate with software to complete the slice
thread trimming function
6. Adopt international advanced slice thread trimming function;
effectively reduce the probability thread jump, more stable.
7. The spindle, X, Y axis all adopt high-power servo motor
8. Strong functions of pattern-combining and multi-span (Tack &
Jump) quilting to enable you to quilt different patterns in each
row in the mattresses of different sizes
9. High rigid machine body, high running speed, balance running,
high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection
function
11. New aluminum alloy needle bar and press plate are controlled by
a double- swinging device without cam avoiding lubrication and
dirtying of material
Technical Parameters:
| Model | YT-3200B |
| Dimension(L*W*H) | 5050mm*1600mm*2300mm |
| Quilting Width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2"; 3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 305mm |
| Thickness of quilting | ≤80mm |
| Stitch length | 2-12mm |
| Speed of operation(m/hour) | 60-260(m/hour) |
| Model of needle | 21#,22#,23#,24# |
| Quilting Speed(r/min) | 100-1200(r/min) |
| Voltage(AC) | 380V/50HZ , 220V/60HZ ,3-Phase |
| Total power | 8KW |
| Gross weight | 5500KG |
About us:
We have a professional R&D department, spare parts workshop and
assembly workshop . The quality of the machine is strictly
controlled by us.
Support and Services:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the
machine.
* Engineers available to service machinery overseas.
* Warranty: 1 year
Packing and Shipping:
Generally speaking, the packing can be carried out with film and
box, which can be packed according to the customer's requirement.
FAQ:
Q: What is the maximum quilting speed of the Computerized Chain
Stitch Quilting Machine?
A: The machine has a maximum quilting speed of 2,500 stitches per
minute, allowing for efficient quilting.
Q: Can this quilting machine handle different fabric thicknesses?
A: Yes, the Computerized Chain Stitch Quilting Machine is equipped
to handle various fabric thicknesses, providing versatility in
quilting projects.
Q: Does this machine come with pre-programmed quilting patterns?
A: Yes, this quilting machine offers a selection of pre-programmed
quilting patterns for added convenience and creativity in quilting
designs.
Q: Can the quilting machine be connected to a computer for
customized quilting designs?
A: Yes, the Computerized Chain Stitch Quilting Machine can be
connected to a computer for importing and creating personalized
quilting designs, offering endless creative possibilities.
