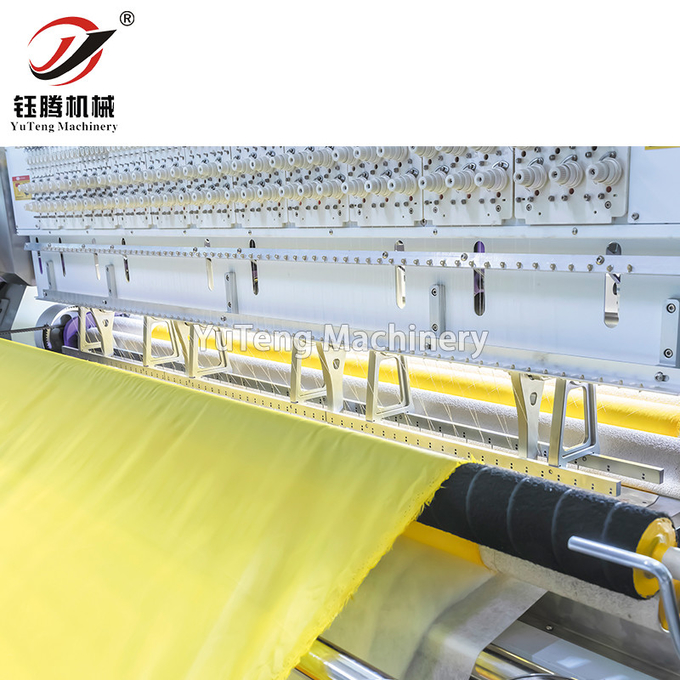

High-speed computerized quilting and embroidery machine
Product Description:
An industrial quilting and embroidery machine is a high-capacity,
robust machine designed for commercial or large-scale production
environments. These machines are built to handle heavy usage and
can work with a wide variety of fabrics and materials.
One of the standout features of this machine is its excellent
stitch quality. With precise stitching and smooth movement, you can
achieve flawless embroidery and quilting every time. The machine is
capable of handling a variety of fabrics.
This industrial quilting machine computerized capability means that
you can save time and increase productivity. With advanced
automation features, you can easily set up the machine to run
multiple designs at once, allowing you to complete large projects
quickly and efficiently.
Features:
1.Function of quilting and embroidering simultaneously.
2. Strong machine body design brings more stable quilting
performance.
3. X, Y, Z axis controlled by servo driving system.
4. Adopt double clutch device, effectively solve the
synchronization problems of (Front and back) rollers.
5. Advanced and practical testing bottom and upper thread broken
techniques, the machine is auto-stop when thread is broken.
6. Infrared sensor makes the operation more secure.
7. Unique design concept of three rollers, make the flower shape
box line more beautiful, more stable running.
8. Auto-return for patch-up embroidery function.
9. More than 200 patterns available were stored in machine.
Technical Parameters:
| Model | YT-1330H | YT-1250H |
| Dimension(L*W*H) | 5300×1500×2100mm | 5300×1500×2100mm |
| Quilting width(mm) | 3300mm | 3300mm |
| Needle/Head | 2 | 2 |
| Heads | 33 | 25 |
| Space between needle | 50.8mm | 67.5mm |
| Stitch length | 1mm-12.7mm | 1mm-12.7mm |
| Model of needle | 9#-16# | 9#-16# |
| Quilting speed(rpm) | 100-1000 | 100-1000 |
| Quilting speed(rpm) | 380V/50HZ ,220V/60HZ,3-Phase | 380V/50HZ ,220V/60HZ,3-Phase |
| Voltage(AC) | 5.5KW | 5.5KW |
| Gross weight | 3500KGS | 3500KGS |
Customized model are available to meet client’s various needs.Applications:
An industrial quilting and embroidery machine is a high-capacity,
robust machine designed for commercial or large-scale production
environments. These machines are built to handle heavy usage and
can work with a wide variety of fabrics and materials.
Support and Services:
Guarantee: 1 year.
After-sale service: Engineer can send to customer factory for
installation, and customer staff can come our factory for training
for free.
Packing and Shipping:
All the machine are packed in elastic film&paper board or
wooden case as required before shipping.
