YTCM-H Computerized Mattress Panel and Quilt Cutting Machine
Product Description:
Used behind quilting machine for fabirc cross-cut,slitting and edge
trimming,can also be used alone.
Features:
1. Easy operation through a 7-inch screen.
2. Two operation modes: photoelectric sensor mode and encoder mode
,which make the machine suitable for cutting different sizes of
marerials.

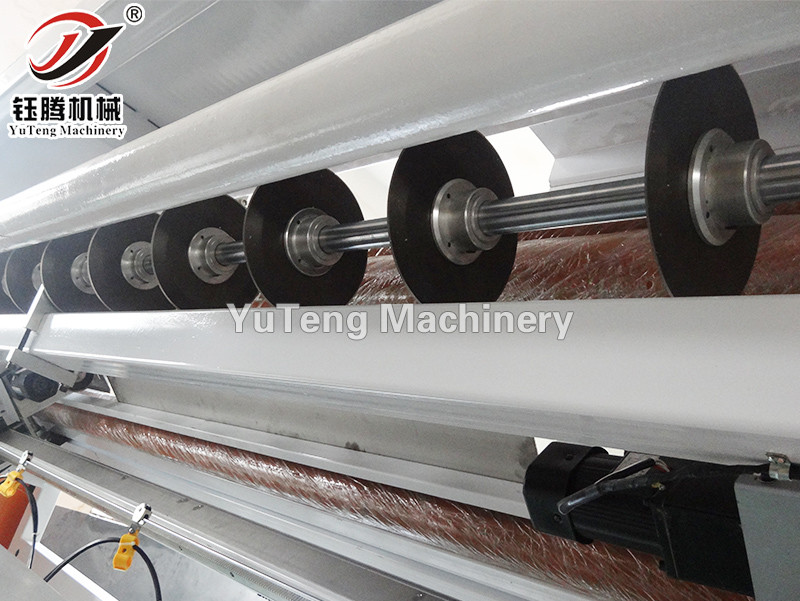

3. Adopting double blades can ensure the precision of edge cutting.
4. Ability to work with a quilting machine or alone.Sliding board
design can save more factory space.
5. Special design realizing that it can be loaded together with
quiling machine in one 20GP container,cost saving for shipping.
Technical Parameters:
| Model | YTCM96-H |
| Dimension(L x W x H) | 3900*1300*2300(mm) |
| Effective cutting length | 600-2100 mm or unlimited |
| Effective cutting width | 80-2600 mm |
| Thickness | ≦60 mm |
| Speed | 10m/minute |
| Power | 3.2 KW |
| Air pressure | 0.4-0.8 Mpa |
| Voltage | 380V/50HZ,220V/60HZ,3-Phase |
| Weight | 1150 KG |
About Our Company:
DongGuan YuTeng Machinery Technology Co., Ltd. is a
modernized,high-tech enterprise specializing in High-speed
Computerized Shuttle (Lock Stitch) Multi-Needle Quilting
Machine,Computerized Quilting and Embroidery Machine,Computerized
Chain Stitch Multi-Needle Quilting Machine,High-speed computerized
double-row quilting and embroidery Machine, Computerized Panel
Cutter Machine, Roller Machine. The products are widely used in
garment, bedding,handbags and household ornament etc. With strong
R&D both in machinery and software, our company focuses on the
profound development in production, sales, and service.
Support and Services:
1.Inquiry and consulting support.
2.View our Factory.
3.Warranty: 1 year
Payment Terms:
T/T 30% deposit in advance, 70% balance before shipment.
Do not hesitate to contact us - we will be happy to assist and
advise you.
