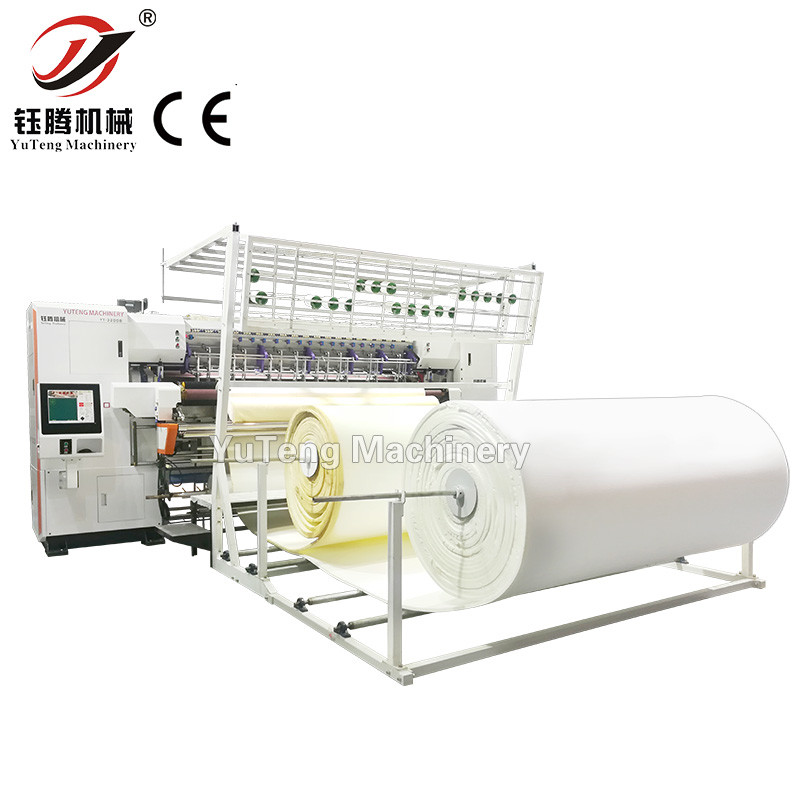

YT-3200B High Speed Computerized Chain Stitch Multi-Needle Quilting
Machine
Product Description:
Mattress panel, mattress pads, bedspreads, comforters, bedding,
blankets, seats covers, decoration, bedding and more.
Main Features:
1. Full thread break detection for top and bottom threads
2. 360°Multi-span and independent patterns, automatic thread
trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting
embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system
and self-developed motion control chip, Fast response speed, long
service life, good stability
5. Spindle driven by servo motor, it is able to change speed and
positive inversion, cooperate with software to complete the slice
thread trimming function
6. Adopt international advanced slice thread trimming function;
effectively reduce the probability thread jump, more stable.
7. The spindle, X, Y axis all adopt high-power servo motor
8. Strong functions of pattern-combining and multi-span (Tack &
Jump) quilting to enable you to quilt different patterns in each
row in the mattresses of different sizes
9. High rigid machine body, high running speed, balance running,
high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection
function
11. New aluminum alloy needle bar and press plate are controlled by
a double- swinging device without cam avoiding lubrication and
dirtying of material
Specification:
Model | YT-3200B |
Dimension(L*W*H) | 5050mm*1600mm*2300mm |
Quilting Width | 2450mm |
Needle rows | 3 |
Space between needle rows | 3"+2"; 3"+3" |
Space between needle | 25.4mm |
X-axis movement displacement | 305mm |
Thickness of quilting | ≤80mm |
Stitch length | 1-12mm |
Speed of operation(m/hour) | 60-260(m/hour) |
Model of needle | 21#,22#,23#,24# |
Quilting Speed(r/min) | 100-1200(r/min) |
Voltage(AC) | 380V/50HZ , 220V/60HZ ,3-Phase |
Total power | 8KW |
Gross weight | 5500KG |
Support and Services:
Inquiry and consulting support.
View our Factory.
Training how to instal the machine, training how to use the
machine.
warranty: 1 year
Customized Model are available to meet client's various needs.
Payment Term:
T/T 30% deposit in advance, 70% balance before shipment.
Company Information:
DongGuan YuTeng Machinery Technology Co., Ltd. is a
modernized,high-tech enterprise specializing in High-speed
Computerized Shuttle (Lock Stitch) Multi-Needle Quilting
Machine,Computerized Quilting and Embroidery Machine,Computerized
Chain Stitch Multi-Needle Quilting Machine,High-speed computerized
double-row quilting and embroidery Machine, Computerized Panel
Cutter Machine, Roller Machine. The products are widely used in
garment, bedding,handbags and household ornament etc. With strong
R&D both in machinery and software, our company focuses on the
profound development in production, sales, and service.
