Products Description:
It is widely for quilting high-quality garments, bedding covers,
textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag,
seat cover ,and wall decoration etc.
Special Features:
1.Quilting and embroidery is completed together.
2.Independent research and development of the operating system,
with the latest embedded operating system and self-researched
motion control chips on the market, the main frame response quickly
with long life and good stability, easy drawing and useful.
3.Compatible with embroidery machine DST files pattern, and
optional feature for proofing production.
4.Can move an inch in front of the needle bar, and provide more
combination of flowers form.
5.Saddling rack, roller and spindle are drive by servo motor.
6.The needle bar running adopt aluminum alloy needle bar frame
structure, don't need to add extra lube, strong and durable.
7.Adopt separation structure of convey cloth rack and moving
saddling rack, effectively reduce the load and jitter of saddling
rack.
8.Adopt double clutch device, effectively solve the synchronization
problems of (Front and back) rollers.
9.Advanced and practical testing bottom and upper thread broken
techniques, the machine is auto-stop when thread is broken.
10.Infrared sensor makes the operation more secure
11. Unique design concept of three rollers, make the flower shape
box line more beautiful, more stable running Super comfortable
space for changing shuttle, easy to convey cloth.
Technical Parameters:
| Model | X64/X80 | X96 |
| Dimension(L*W*H) | 4100(4500)×1400×2350mm | 4900×1400x2350mm |
| Quilting Width | 1650/2000mm | 2400mm |
| Needle rows | 2 | 2 |
| Space between needle rows | 3" | 3" |
| Space between needle | 50.8mm / 67.5mm | 50.8mm / 67.5mm |
| X-axis movement displacement | 152.4mm(/Customizable) | 152.4mm(/Customizable) |
| Stitch length | 2-12mm | 2-12mm |
| Model of needle | 12#-16# | 12#-16# |
| Quilting Speed(r/min) | 100-1000 | 100-1000 |
| Voltage(AC) | 380V/50HZ , 220V/60HZ ,3-Phase | 380V/50HZ , 220V/60HZ ,3-Phase |
| Total power | 4.5KW | 6KW
|
| Gross weight | 3000/3400Kg | 3850Kg |
Customized model are available to meet client's various needs

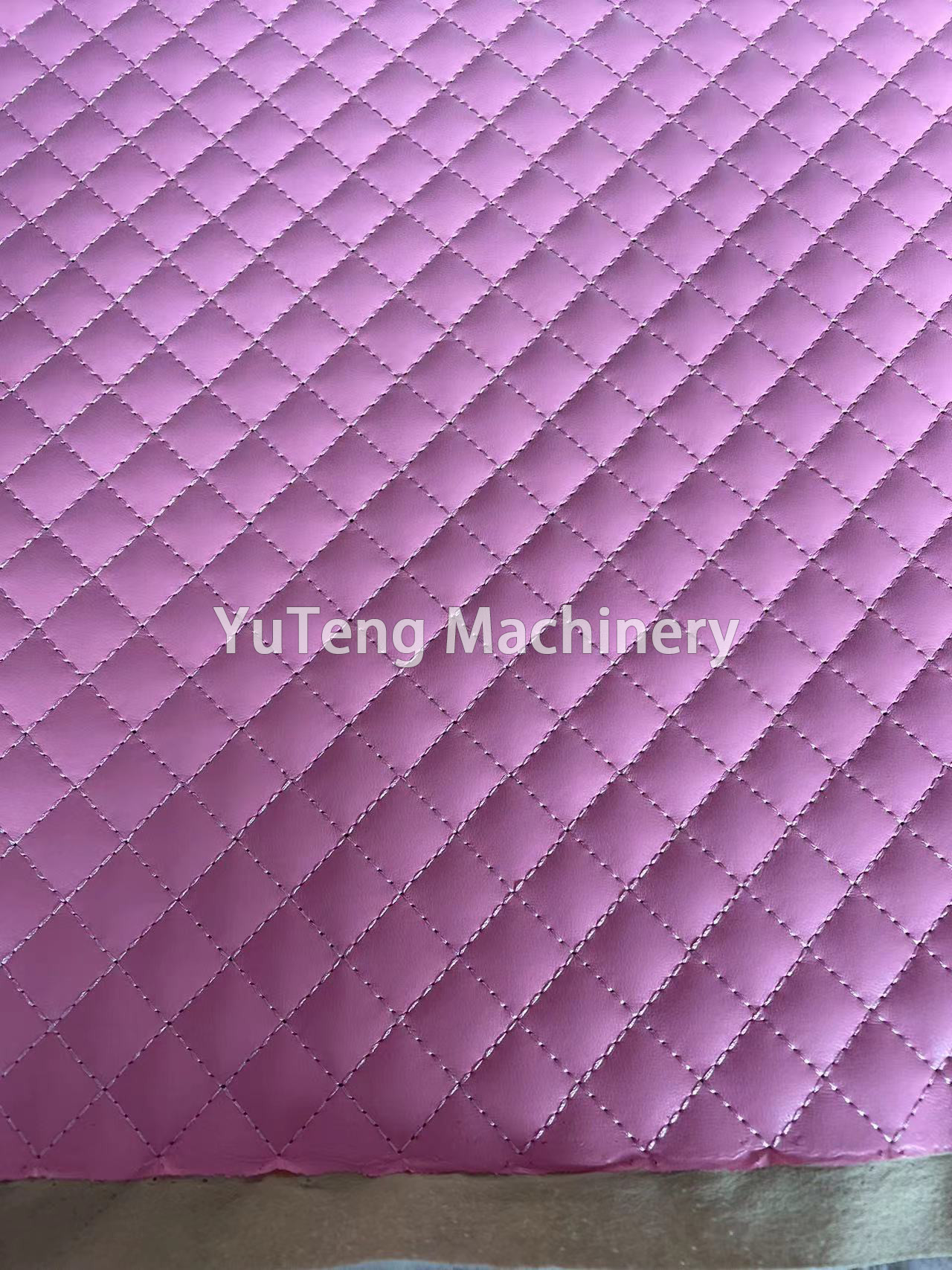

Pattern Display:
Our Company Information:
DongGuan YuTeng Machinery Technology Co., Ltd. is a
modernized,high-tech enterprise specializing in High-speed
Computerized Shuttle (Lock Stitch) Multi-Needle Quilting
Machine,Computerized Quilting and Embroidery Machine,Computerized
Chain Stitch Multi-Needle Quilting Machine,High-speed computerized
double-row quilting and embroidery Machine, Computerized Panel
Cutter Machine, Roller Machine. The products are widely used in
garment, bedding,handbags and household ornament etc. With strong
R&D both in machinery and software, our company focuses on the
profound development in production, sales, and service.
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in
quilting machinery Industry for over 20 years, proficient in
advanced manufacturing technology, unique designs and Innovation.
He has won a good reputation in the Industry. With Innovative
technology, stable quality and high quality after service, products
in his brand sell very good at home and abroad. Leading an
outstanding R&D team more than 20 professional engineering and
technical personnel and customer service outlets throughout the
country, YeTeng always provides clientswith full technical support
and perfect afterservice.
FAQ:
Voltage:Please be sure to tell us your country's rated voltage
before shipping.(380v/50HZ or 220v/60HZ)
Payment terms: TT:30% deposit in advance, 70% was paid off before delivery.
